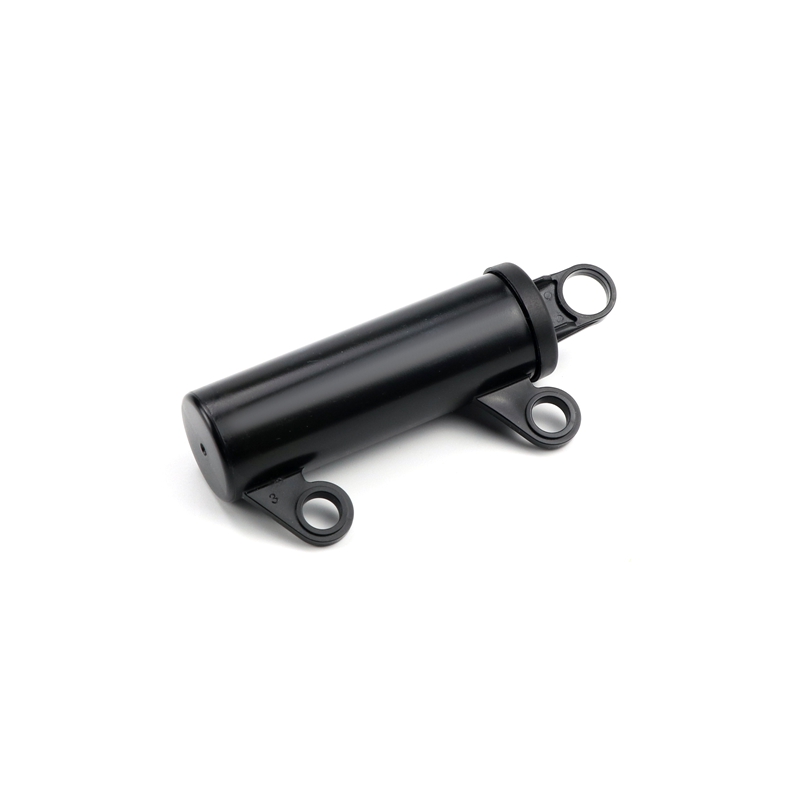

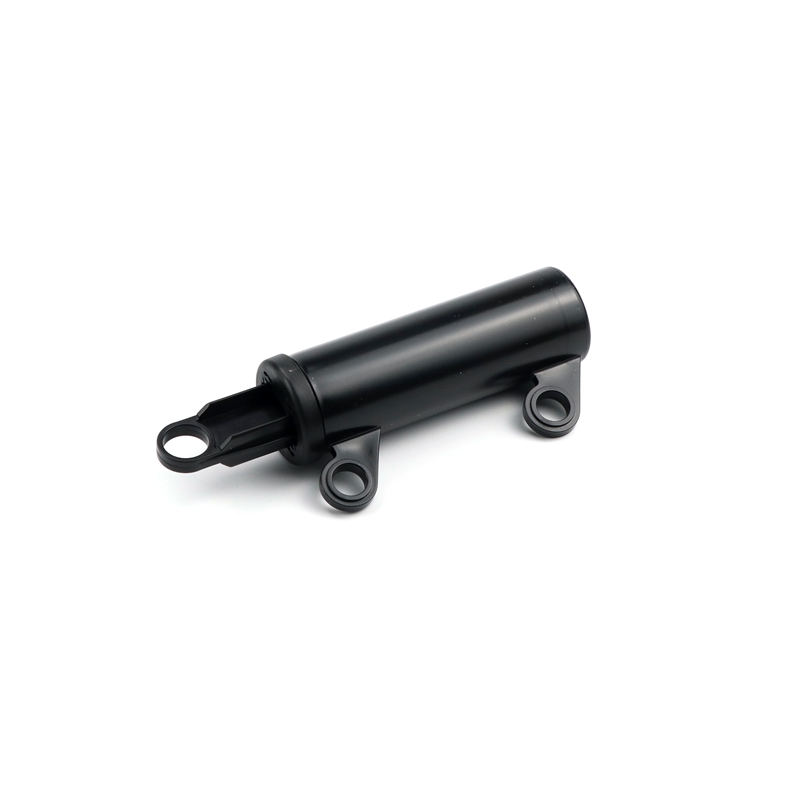

Axial/Barrel Damper RD-V08
Axial/Barrel Damper RD-V08




  • Axial/Barrel Damper RD-V08
  • Axial/Barrel Damper RD-V08

Axial/Barrel Damper RD-V08

Characteristics

SOC Free, For Glove box, one-way

Torque
3 - 3
1
10
Kgf.cm
Drawing
Axial/Barrel Damper RD-V08 Drawing
Component Parts

Less honorary seat: POM

Upper cover: PP

Pull handle: POM

O-RING: VMQ

Oil: silicone oil

Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

Technical Specifications

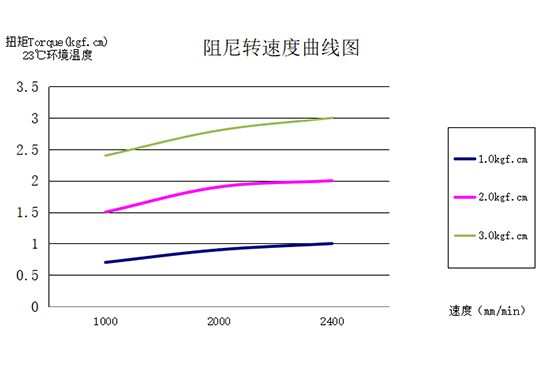

Characteristic
Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

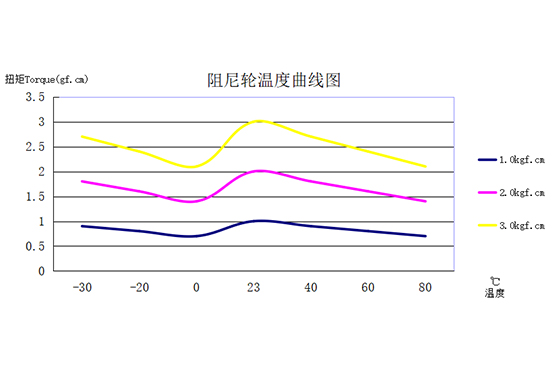

Temperature - torque characteristic (20r/min)
Temperature - torque characteristic (20r/min)

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
