Axial/Barrel Damper RD-T012C
Axial/Barrel Damper RD-T012C




  • Axial/Barrel Damper RD-T012C
  • Axial/Barrel Damper RD-T012C

Axial/Barrel Damper RD-T012C

Characteristics

SOC Free, two-way, No angle limit

Torque
200 - 850
100
1500
gf.cm

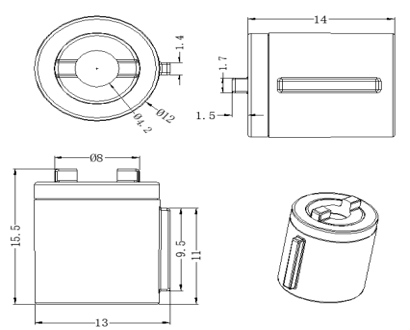

Drawing
Drawing
Component Parts

Less honorary seat: PC

Upper cover: PC

Rotor: POM

Gear: POM

O-RING: VMQ

Oil: silicone oil

Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

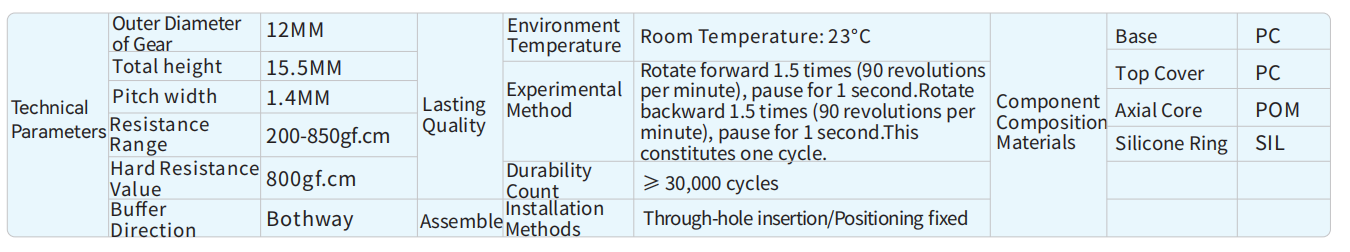

Technical Specifications
Characteristic
Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

Temperature - torque characteristic (20r/min)
Temperature - torque characteristic (20r/min)

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
