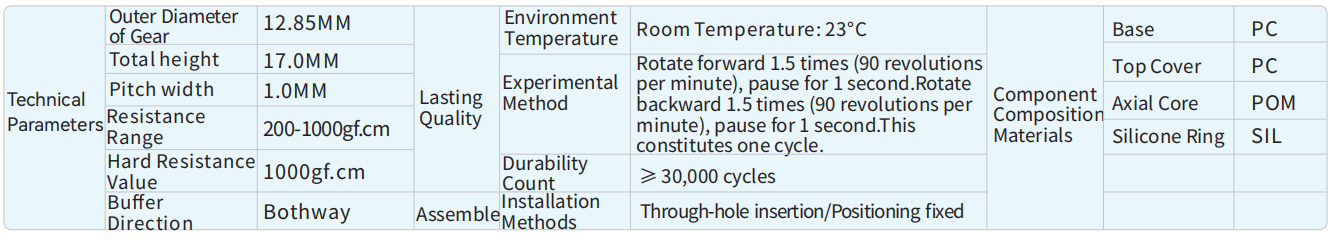

Less honorary seat: PC
Upper cover: PC
Rotor: POM
O-RING: VMQ
Oil: silicone oil
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
Features of Axial Dampers for Center Console Lids:
●Smooth and Effortless Operation:
When you open or close your center console lid, it moves smoothly and gently, providing a premium feel every time you use it.
●Quiet Performance:
No more annoying noises when you access your console. The damper ensures silent operation, making your ride more peaceful.
●Safe and Controlled Movement:
The lid won’t slam shut or snap open unexpectedly, protecting your fingers and enhancing safety for all passengers.
●Consistent Performance in All Conditions:
Whether it's hot or cold, the damper performs reliably, ensuring smooth lid movement regardless of the weather.
●Durable and Long-Lasting:
Built from high-quality materials, the damper withstands regular use and lasts a long time, maintaining its performance over years of driving.
●Compact and Unobtrusive Design:
The damper fits seamlessly into the console mechanism without taking up extra space or altering the sleek interior design of your vehicle.
●Customizable Comfort:
Different damping force options are available, meaning the lid can be perfectly tailored to suit the weight and design of your specific console lid.
Axial dampers are widely used in various automotive interior applications beyond center console lids, such as:
Glove Box Lids: Ensuring smooth opening and closing.
Cup Holder Covers: Providing controlled movement.
Armrests: Enhancing comfort and usability.
Axial dampers are used in various parts of coffee machines, including:
Lids and Covers: Ensuring gentle opening and closing to prevent spills and noise.
Drip Trays: Allowing for smooth movement when being pulled out or pushed in.
Internal Mechanisms: Providing controlled movement for parts involved in the brewing process.
Elevate your vehicle's interior functionality with our precision-engineered axial dampers, expertly designed for center console lid applications. Enjoy seamless, quiet operation and a smooth, controlled descent with our axial dampers, tailored to enhance the user experience in automotive consoles. Trust Teao for reliable, high-performance solutions that meet the demands of your center console lid motion control needs. Any questions please feel free to contact us!
Polymers: High-performance plastics for components requiring low friction and high wear resistance.
Hydraulic Fluids: Used in hydraulic dampers to provide consistent damping force across a range of temperatures.
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
Axial Dampers for Center Console Lid
