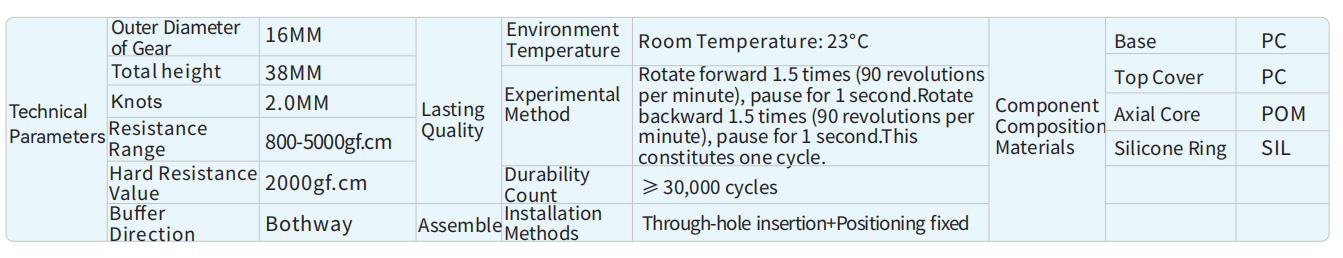

Less honorary seat: PC
Upper cover: PC
Rotor: POM
O-RING: VMQ
Oil: silicone oil
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
1. Damping and Cushioning Direction: T - Bidirectional
2. Torque Testing Standard: 23±2°C, speed of 20 r/min
3. Torque Range: 0.8-5 kgf.cm
4. Static High and Low-Temperature Requirement: -40°C to 90°C
5. Damping Durability Requirement: >30,000 cycles
6. Flame Resistance Compliance:
- GB 8410 "Standard for the Burning Characteristics of Materials Used in Automotive Interior Parts"
- Combustion rate in Class D should be less than 100mm/min
7. Restricted Substances Compliance:
- GB/T 30512 "Standard for Requirements of Restricted Substances in Automotive Components"
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
