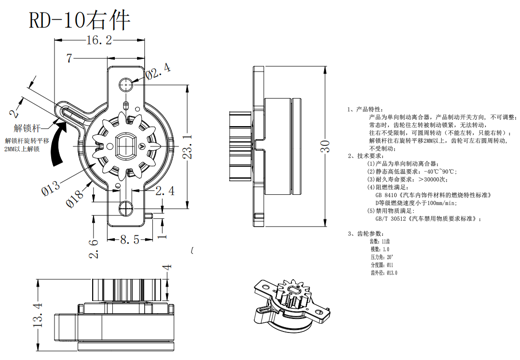

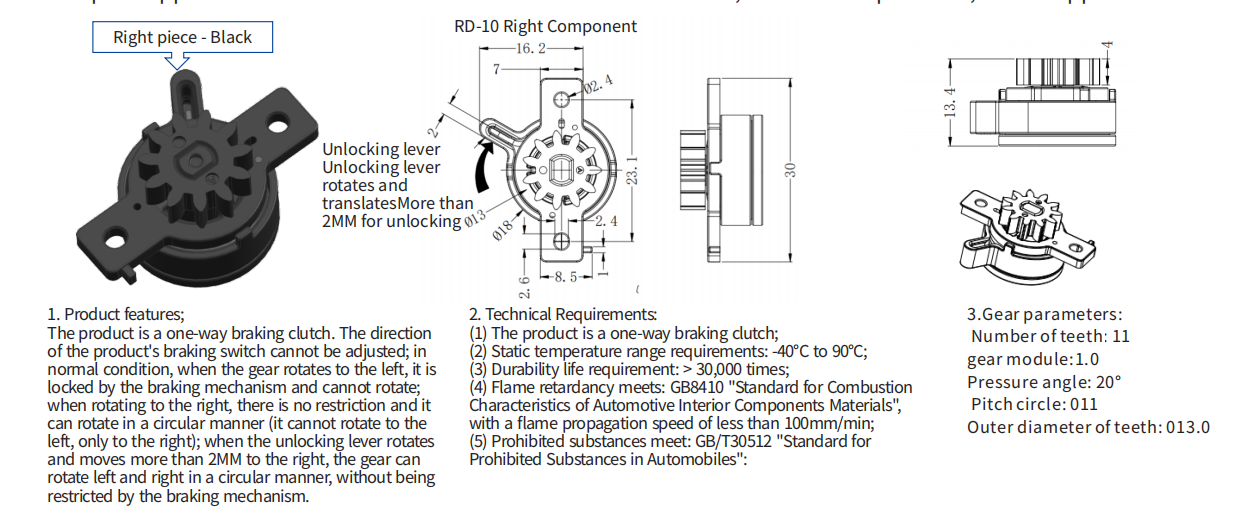

Drawing
Component Parts
Less honorary seat: PC
Right cover: PC
Axis Rotor: POM
Gear: POM
Steel ring: stainless steel
Torsion spring-right: stainless steel
Oil: silicone oil
Durability
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times

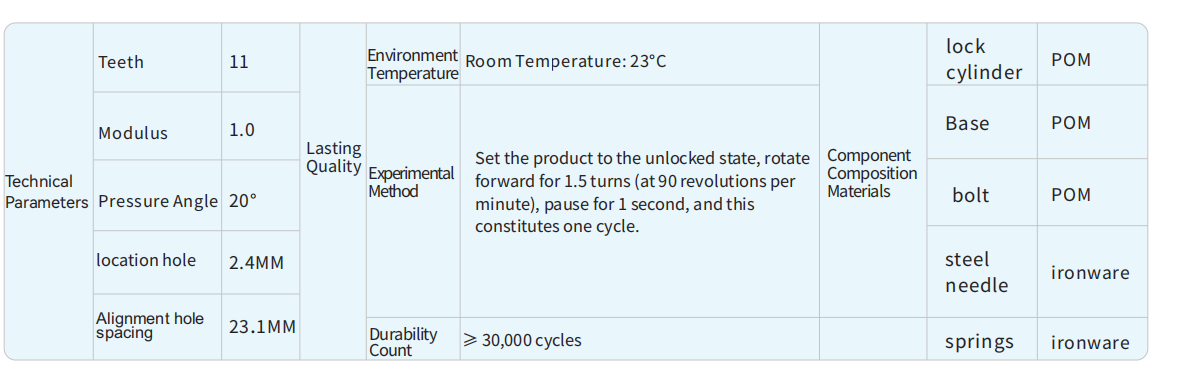

Technical Specifications
| Type | 11 | / | / | / |
| Number of teeth | 11 | / | / | / |
| Tooth width | ||||
| Product height | 13.4 | |||
| Module | 1.0 | / | / | / |
| Pitch circle diameter | Φ13 | |||
| Pressure angle | 20° | / | / | / |
| Material | POM | / | / | / |
