Gear/Rotary Damper RD-T003
Gear/Rotary Damper RD-T003
Gear/Rotary Damper RD-T003




  • Gear/Rotary Damper RD-T003
  • Gear/Rotary Damper RD-T003
  • Gear/Rotary Damper RD-T003

Gear/Rotary Damper RD-T003

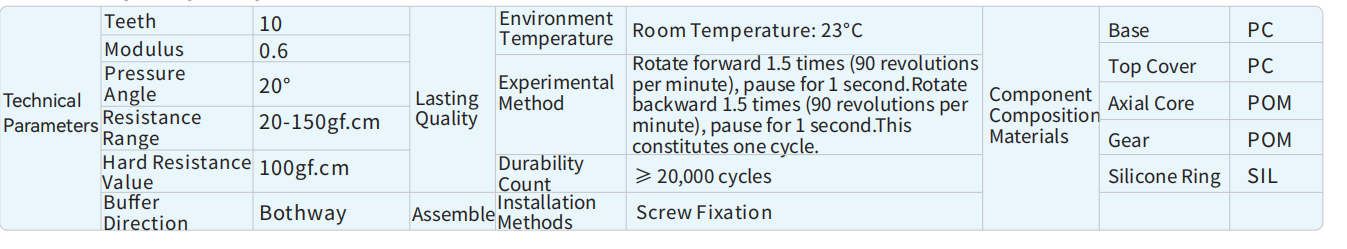

Characteristics

SOC Free, Screw, two-way, No angle limit

Torque
20 - 150
10
1000
gf.cm
Drawing

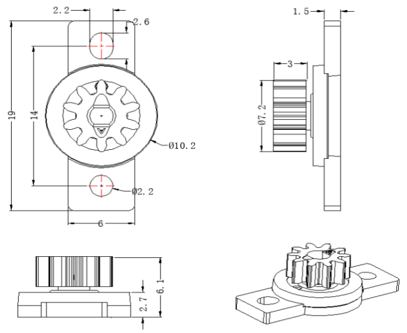

Gear/Rotary/Vane Damper RD-T003 Drawing
Component Parts

Less honorary seat: PC

Upper cover: PC

Rotor: POM

Gear: POM

O-RING: VMQ

Oil: silicone oil

Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

Technical Specifications



Type10///
Number of teeth10///
Tooth width



Product height6.1


Module0.6///
Pitch circle diameterΦ7.2


Pressure angle20°///
MaterialPOM///
Characteristic
Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

Temperature - torque characteristic (20r/min)
Temperature - torque characteristic (20r/min)

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
