Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: VMQ
Oil: silicone oil
Enhanced User Experience: These dampers ensure smooth and controlled movement, making it effortless to open and close cup holders, thereby improving user convenience.
Spill Prevention: By regulating the rotation speed, these dampers minimize sudden movements, reducing the risk of spills and mess inside the vehicle.
Noise Reduction: The dampening mechanism reduces noise generated during cup holder operation, contributing to a quieter and more comfortable cabin environment for passengers.
Durability and Longevity: Crafted from high-quality materials, Teao's Rotary Dampers are built to withstand frequent use, ensuring long-lasting performance and reliability. With a lifespan of 30,000 cycles, they provide reliable operation over an extended period, ensuring consistent user satisfaction.
Temperature Resilience: Designed to function optimally even at normal temperatures of 23°C, these dampers maintain consistent performance in various environmental conditions.
Operation Conditions: These dampers are designed for a specific operational cycle, including one rotation per second with a pause and reverse rotation, ensuring precise control and functionality. One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Teao's customization service for Rotary Dampers for Cup Holders ensures that clients receive dampers precisely tailored to their needs. Our team collaborates closely with customers to understand their requirements and preferences, offering:
●Expert guidance on torque customization, ensuring optimal performance for cup holder operation.
●Flexible adjustment of opening speeds, allowing for seamless integration into various vehicle designs.
●Custom design support, accommodating specific dimensions, materials, and aesthetic preferences.
With Teao's commitment to quality and innovation, clients can expect customized rotary dampers that enhance the functionality and user experience of cup holders in their vehicles!

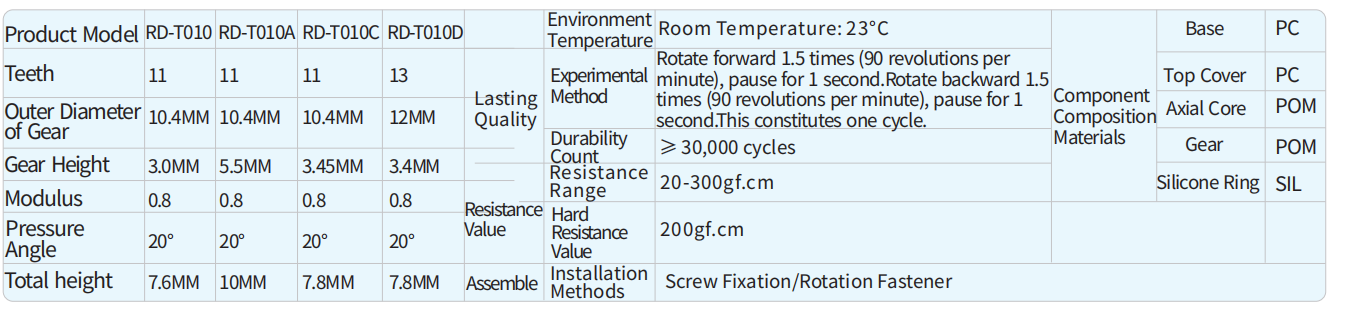

| Type | T010 | T010A | T010B | T010C | T010D |
| Number of teeth | 11 | 11 | 11 | 13 | 11 |
| Tooth width | / | / | / | / | / |
| Product height | 7.6 | 10 | 7.8 | 7.8 | 7.5 |
| Module | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Pitch circle diameter | Φ10.4 | Φ10.4 | Φ10.4 | Φ12 | Φ10.4 |
| Pressure angle | 20° | 20° | 20° | 20° | 20° |
| Material | POM | POM | POM | POM | POM |
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
Rotary Dampers for Cup Holders Demonstration Diagram
