Gear/Rotary Damper RD-T039
Characteristics
SOC Free, Screw, two-way, No angle limit
Applications
Torque
20
-
300
10
1000
gf.cm

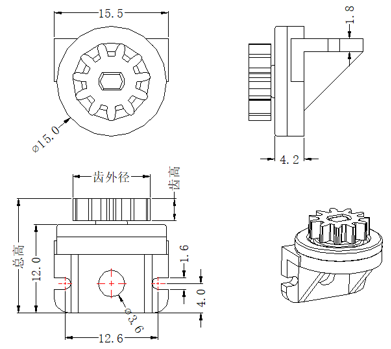

Drawing
Component Parts
Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: VMQ
Oil: silicone oil
Durability
Ambient temperature: Normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn)/1s - pause / 1s
Lifetime: 30000 times
Technical Specifications
| Type | T039 | T039A | T039B | T039C |
| Number of teeth | 11 | 11 | 13 | 16 |
| Tooth width | ||||
| Product height | 15.5 | 18 | 15.7 | 16.7 |
| Module | 0.8 | 0.8 | 0.8 | 0.8 |
| Pitch circle diameter | Φ10.4 | Φ10.4 | Φ12 | Φ14.4 |
| Pressure angle | 20° | 20° | 20° | 20° |
| Material | POM | POM | POM | POM |
Characteristic
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above
Temperature - torque characteristic (20r/min)
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
