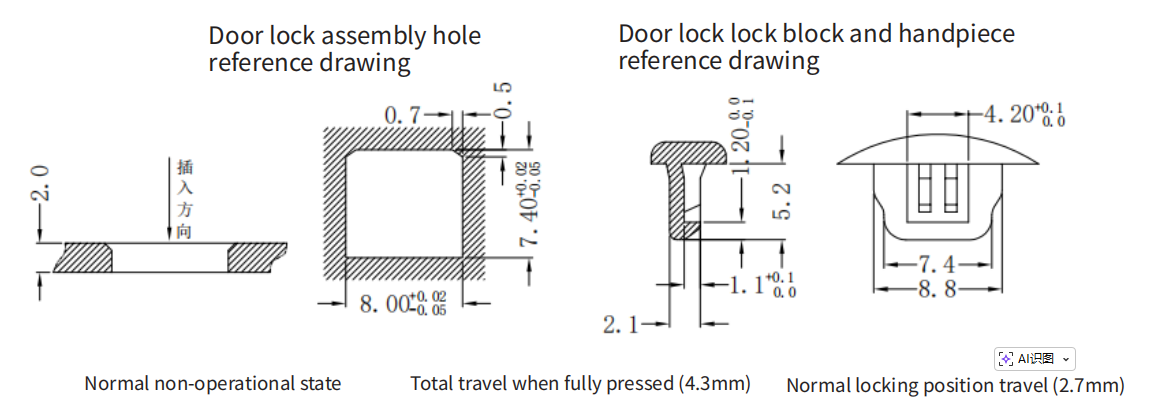

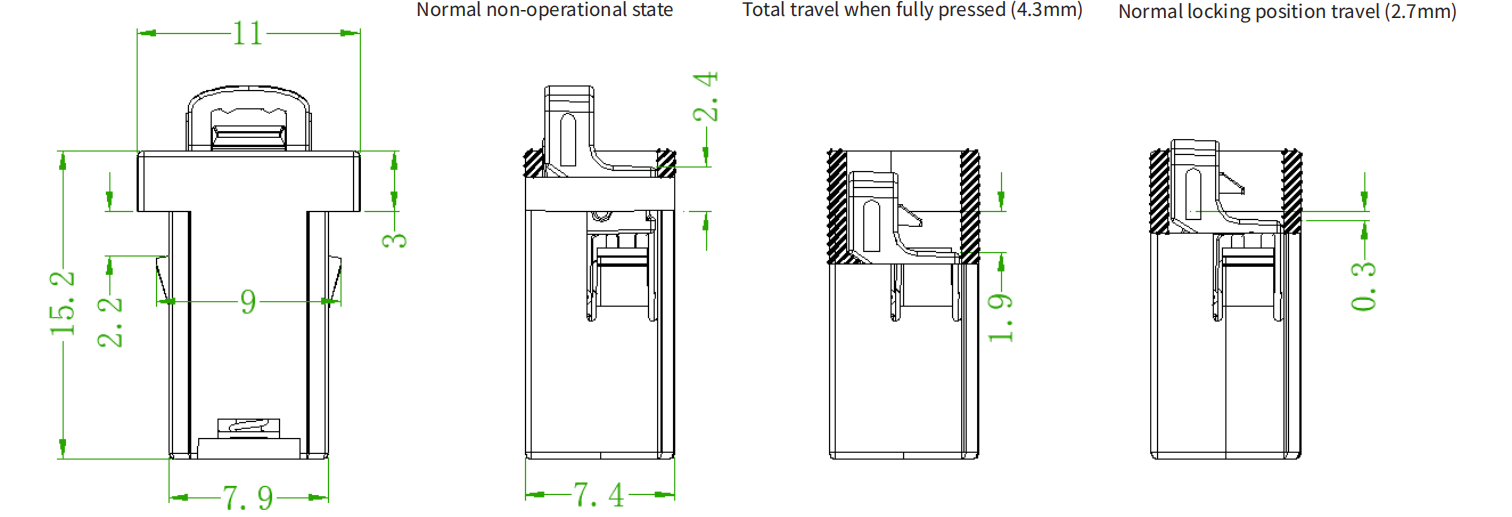

Drawing
Component Parts
Less honorary seat: POM
Lock cylinder: POM
Deadbolt: POM
Spring: stainless steel
Steel needle: stainless steel

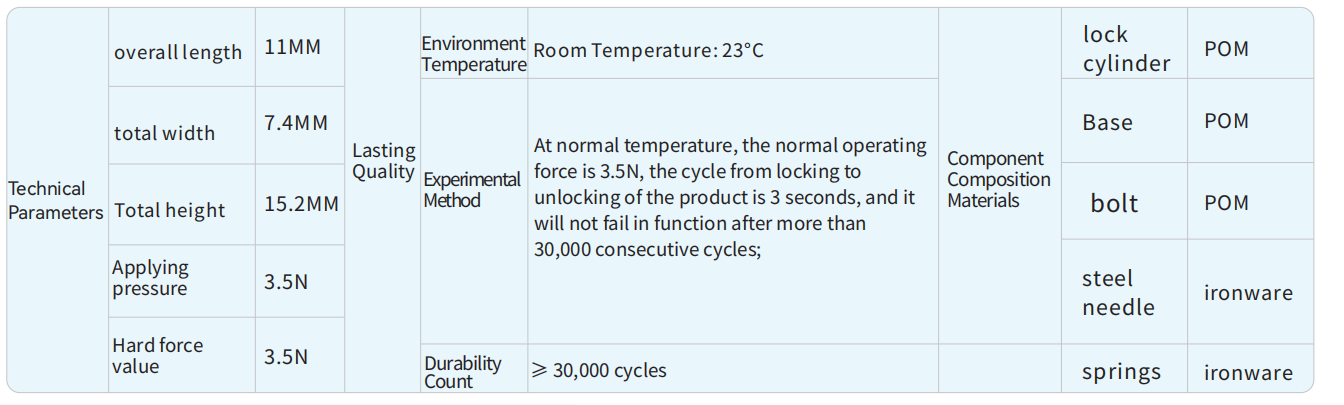

Technical Requirements
1. Storage Temperature: -40°C to 90°C
Operating Temperature: -35°C to +80°C
2. At room temperature:
- Door lock operation press force: 3.5N ± 1.5
- Maximum holding force given to the counterpart in the locked state: >10N
3. Durability Requirements:
At room temperature, with a normal operating force of 3.5N, the product should be able to lock and unlock in one cycle within 3 seconds. The product should undergo over 30,000 cycles without functional failure.
4. The product must comply with ROHS environmental protection requirements.
