Less honorary seat: POM
Lock cylinder: POM
Deadbolt: POM
Spring: stainless steel
Steel needle: stainless steel
1. Storage Temperature: -40°C to 90°C, Operating Temperature: -35°C to +80°C.
2. At room temperature, the door lock operation pressing force should be 6N ±1.
Insertion force into the opponent's mounting hole: ≤20N.
Extraction force: ≥50N (subject to customer hole design).
In the locked state, the clamping force applied to the opponent's component should be ≥20N.

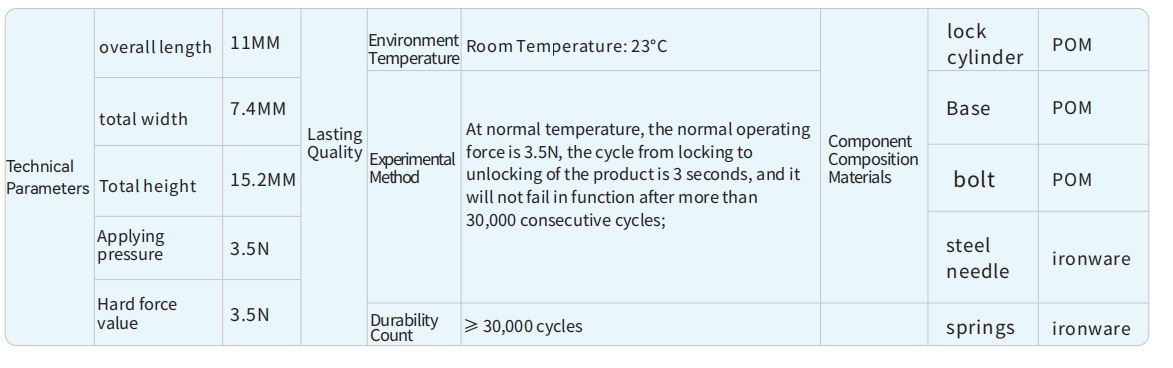

3. Durability Requirements:
(1) At room temperature, with the product initially in the locked position, wait for 0.5 seconds, then unlock. After unlocking, wait for 0.5 seconds. This constitutes one cycle of operation. The product should undergo more than 50,000 cycles of continuous testing without any functional failure.
(2) At room temperature, under a continuous 6N load, follow the same steps as in (1) above, and the product should undergo more than 30,000 cycles of continuous testing without any functional failure.
4. The product must comply with ROHS environmental requirements.
